Scope of Application

PeakSonic M1 is a handheld portable bladder volume instrument, which can be applied in the department of Surgery, Emergency, ICU, Obstetric, Gynecology, radiotherapy and nursing home. It can provide the basis for clinical catheterization, evaluate the post-void residual after patient urination, and make auxiliary diagnosis on the bladder and kidney diseases. The system is also suitable for patients of lower body disability or loss of auto-urination function, to confirm the proper timing of urination.

Features and Benefits

PeakSonic M1 series is a noninvasive bladder volume instrument developed by applying 2D ultrasound imaging technology and measurement principle. It is a handheld device composed of host and probe.

  • ◎ Noninvasive urinary bladder volume measurement.
  • ◎ Two modes selection: Easy and Expert Mode.
  • ◎ Rapid scanning measurement result available within a few seconds.
  • ◎ Easy to learn and use. Quick and precise bladder scan can be easily accomplished.
  • ◎ One bladder scan image, patient information and bladder volume values are printable.
  • ◎ User friendly capacitive touch screen.
  • ◎ Built-in TF storage card.
  • ◎ Voice annotation function available.
  • ◎ Multiple language selection.
  • ◎ Integrated fully sealed probe and host with 2.4-inch LCD display and touch screen.
  • ◎ Big data storage space: more than 10,000 cases can be stored.
  • ◎ Chargeable battery, light-weighted, easy to carry, long operation and standby time.
  • ◎ Patient information management software installed for reviewing, editing and printing.
  • ◎ Patient history information review (only available with M1-W).
  • ◎ WIFI connection to computer (only available with M1-W).
  • ◎ Reduce unnecessary catheterization.
  • ◎ Prevent CAUTI (Catheter Associated Urinary Tract Infection).
  • ◎ Identify different types of urinary incontinence to determine the proper nursing.
  • ◎ Beneficial for the post-operative recovery.
  • ◎ Cost efficiency and save inspection time.
  • ◎ No calibration required.

Operation Modes

Modes selection: Easy and Expert and Intelligent. Expert is the default mode. When performing a pre-scan, the operator will observes the following exam results:

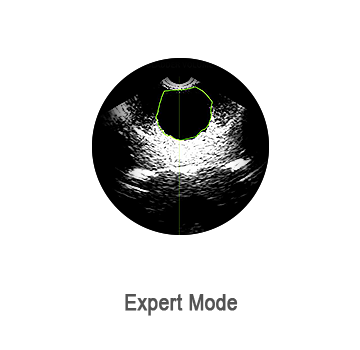

Display one real time ultrasonic image of the inspected bladder

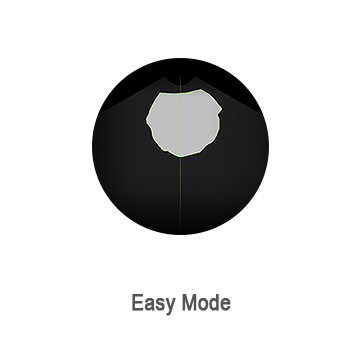

Display a cross-sectional view of the inspected bladder

Unique Characteristics

PeakSonic M1 series bladder scanner has the functions of multi-mode, easy operation, large amount of data storage, historical data review, wireless transmission, etc.



Capacitive touch screen



Data entry by virtual keyboard or voice annotation



Wireless bluetooth printing



Wi-Fi data transfer & >1k patient records review

(M1-W only)

Specifications

M1 2D
Modes of scan 2D scan
Probe frequency 2.5MHZ
Measure volume 0-999ml
Display & control Touch screen
Operation Mode Easy and Expert mode
Language selection Multiple language
Battery capacity 2600 mAh
Print mode Bluetooth printing
Data transmission USB/Wi-Fi(M1-W only)
Data storage Built-in TF card
Continuous scanning time >3 hrs and 20 min
Standby time >= 5 hours
Accuracy Error ±14%,±14ml
