Scope of Application

PeakSonic M3 is a handheld portable bladder volume instrument, which can be applied in the department of Surgery, Emergency, ICU, Obstetric, Gynecology, radiotherapy and nursing home. It can provide the basis for clinical catheterization, evaluate the post-void residual after patient urination, and make auxiliary diagnosis on the bladder and kidney diseases. The system is also suitable for patients of lower body disability or loss of auto-urination function, to confirm the proper timing of urination.

Features and Benefits

PeakSonic M3 is a noninvasive bladder volume instrument developed by applying 2D ultrasound imaging technology and measurement principle. The key components of the device are a probe and a smartphone or a tablet PC.

  • ◎ Noninvasive urinary bladder volume measurement.
  • ◎ Two modes selection: Easy and Expert Mode.
  • ◎ Rapid scanning measurement result available within a few seconds.
  • ◎ Easy to learn and use. Quick and precise bladder scan can be easily accomplished.
  • ◎ One bladder scan image, patient information and bladder volume values are printable.
  • ◎ User friendly capacitive touch screen.
  • ◎ Internal storage on phone or tablet PC.
  • ◎ Bladder volume preset alert.
  • ◎ Multiple language selection.
  • ◎ Big data storage space: more than 10,000 cases can be stored.
  • ◎ Chargeable battery, light-weighted, easy to carry, long operation and standby time.
  • ◎ Patient information management software installed for reviewing, editing and printing.
  • ◎ Patient history information review.
  • ◎ WIFI connection to mobile phone or tablet PC.
  • ◎ Reduce unnecessary catheterization.
  • ◎ Prevent CAUTI (Catheter Associated Urinary Tract Infection).
  • ◎ Identify different types of urinary incontinence to determine the proper nursing.
  • ◎ Beneficial for the post-operative recovery.
  • ◎ Cost efficiency and save inspection time.
  • ◎ No calibration required.

Operation Modes

Modes selection: Easy and Expert. Expert is the default mode. When performing a pre-scan, the operator will observes the following exam results:



Display one real time ultrasonic image of the inspected bladder



Display a cross-sectional view of the inspected bladder

Unique Characteristics

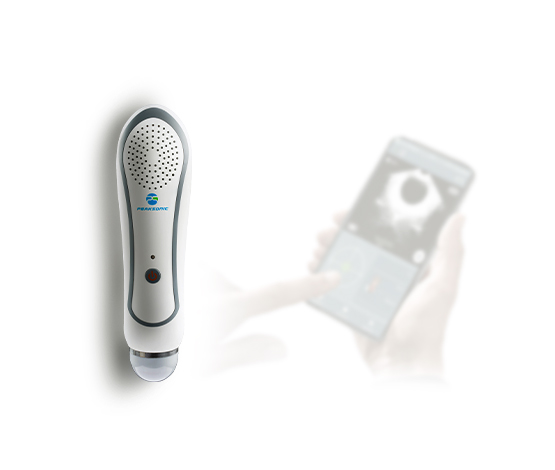

PeakSonic M3 bladder scanner is connected with mobile phone or tablet through WiFi, and image and data are displayed through APP. It has many functions, such as multi-mode, easy operation, large amount of data storage, historical data review, wireless transmission, etc. M3 is one of the few portable bladder volume instrument which can transmit images wirelessly on the market.



Realtime scanning images in sync with mobile devices



Wireless bluetooth printing



>1000 patient records review

Specifications

M3 2D
Modes of scan 2D scan
Probe frequency 2.5MHZ
Measure volume 0-999ml
Display & control Self-adapting
Operation Mode Easy and Expert mode
Language selection Multiple language
Battery capacity 2400 mAh
Print mode Bluetooth printing
Data transmission USB/Wi-Fi
Data storage Internal storage on phone or tablet PC
Continuous usage 2 hrs 50 min
Stand by > 4 hrs 20 min
Accuracy Error ±14%,±14ml
