Scope of Application

PeakSonic M4 is a handheld portable bladder volume instrument, which can be applied in the department of Surgery, Emergency, ICU, Obstetric, Gynecology, radiotherapy and nursing home. It can provide the basis for clinical catheterization, evaluate the post-void residual after patient urination, and make auxiliary diagnosis on the bladder and kidney diseases. The system is also suitable for patients of lower body disability or loss of auto-urination function, to confirm the proper timing of urination.

Features and Benefits

PeakSonic M4 is a noninvasive bladder volume instrument developed by applying 3D ultrasound imaging technology and measurement principle. The key components of the device are a probe and a smartphone or a tablet PC.

  • ◎ Noninvasive urinary bladder volume measurement.
  • ◎ Three modes selection: Easy, Expert and Intelligence Mode.
  • ◎ Rapid scanning measurement result available within a few seconds.
  • ◎ Easy to learn and use. Quick and precise bladder scan can be easily accomplished.
  • ◎ Two orthorhombic images, patient information and bladder volume values are printable.
  • ◎ User friendly capacitive touch screen.
  • ◎ Perform 3D imaging of bladder volume.
  • ◎ Internal storage on tablet PC or mobile phone.
  • ◎ Bladder volume preset alert.
  • ◎ Multiple language selection.
  • ◎ Big data storage space: more than 10,000 cases can be stored.
  • ◎ Chargeable battery, light-weighted, easy to carry, long operation and standby time.
  • ◎ Patient information management software installed for reviewing, editing and printing.
  • ◎ Patient history information review.
  • ◎ WIFI connection to tablet PC or mobile phone.
  • ◎ Prevent CAUTI (Catheter Associated Urinary Tract Infection)
  • ◎ Identify the different types of urinary incontinence to determine the proper nursing.
  • ◎ Beneficial for post-operative recovery.
  • ◎ Cost efficiency and save inspection time.
  • ◎ No calibration required.

Operation Modes

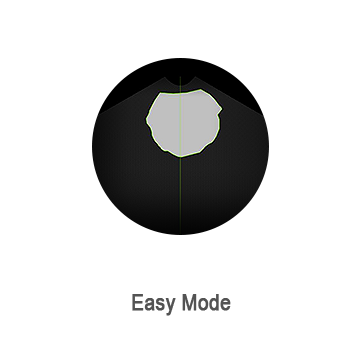

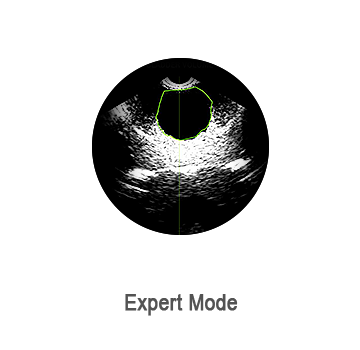

Modes selection: Easy, Expert and Intelligence. Expert mode is the default. When performing a pre-scan, the operator will observe the following exam results:

Display an ultrasonic image
Illustrate 12 real time ultrasonic images of the inspected bladder at the end of scanning

Display a cross-section view
Illustrate 12 cross-section views of the inspected bladder at the end of scanning

Display a real-time bladder scan projection position
Illustrate 12 real time ultrasonic images of the inspected bladder at the end of scanning

Unique Characteristics

PeakSonic M4 bladder scanner is connected with mobile phone or tablet through WiFi, and image and data are displayed through APP. Standard trolley is used in hospitals. It has innovative intelligence mode, 3D scanning, easy operation, large amount of data storage, historical data review, wireless transmission and other functions. M4 is the most comprehensive portable bladder volume instrument on the market, which can transmit images and data wirelessly.



Intelligent bladder positioning



Bladder 3D image display



Wireless bluetooth printing



>1000 patient records review

Specifications

M4 3D
Modes of scan 3D scan
Probe frequency 2.5MHZ
Measure volume 0-999ml
Display & control Self-adapting
Operation Mode Easy, Expert & Intelligence mode
Language selection Multiple language
Battery capacity 2400 mAh
Print mode Bluetooth printing
Data transmission USB/Wi-Fi
Data storage Internal storage on phone or tablet PC
Continuous scanning time 2 hrs 20 min
Stand by > 4 hrs 20 min
Accuracy Error ±7%,±7ml
